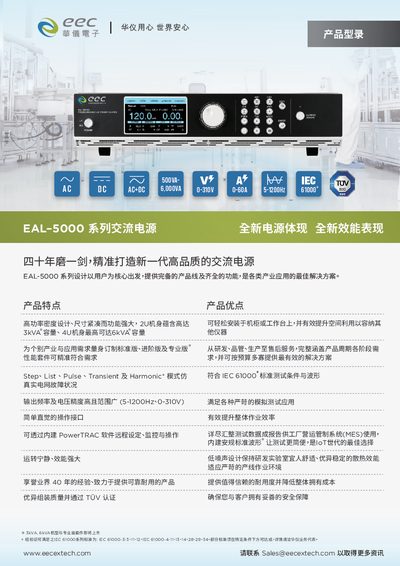

The Eecextech EAL-5000 series is a programmable AC power source offering 500 VA‑6 kVA output, multiple waveforms, remote control and IEC 61000 compliance.
The EAL-5000 series provides a compact 2U/4U design with power ratings from 500 VA up to 6 kVA. It supports a wide range of waveforms—List, Pulse, Transient and Harmonic—to simulate real‑world grid disturbances and meet IEC 61000 testing requirements. The unit features low‑noise operation (average 52‑55 dB) and robust thermal performance for harsh production‑line environments.
Control is handled through a single knob or optional digital keys, and the built‑in PowerTRAC software enables remote configuration, monitoring and data logging via GPIB, RS‑232, USB or LAN interfaces. The series complies with multiple IEC 61000 standards and is TÜV‑certified, making it suitable for R&D, production, quality control and after‑sales service across many industries.
| Power Capacity | 500 VA to 6 kVA |
|---|---|
| Average Noise Level | 52‑55 dB |
| Remote Control Software | PowerTRAC |
| Communication Interfaces | GPIB, RS‑232, USB, LAN |
| IEC 61000 Compliance | Yes |
The unit supports List, Pulse, Transient and Harmonic modes.
Remote control is possible through the PowerTRAC software using GPIB, RS‑232, USB or LAN connections.
The average operating noise is between 52 dB and 55 dB.
