Technical datasheet for the EastRising ER-OLEDM1602-4 series passive matrix yellow OLED display module, including specifications and timing.

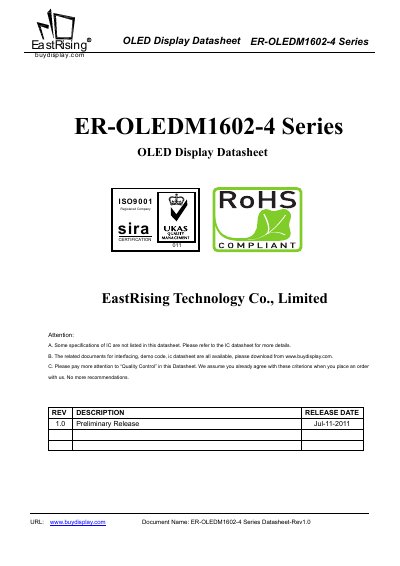

This document is a technical datasheet for the EastRising ER-OLEDM1602-4 Series OLED Display. It provides detailed information on the module's basic specifications, mechanical drawings, pin definitions, and absolute maximum ratings.
The guide covers electrical characteristics for various microprocessor interfaces (68XX, 80XX, Serial) and outlines reference sequences for power-up, power-down, and reset procedures. It also includes quality control criteria and handling precautions specific to the glass-based OLED panel.
| Display Mode | Passive Matrix OLED |
|---|---|
| Display Color | Yellow (monochrome) |
| Drive Duty | 1/16 Duty |
| Controller Driver | US2066 |
| Diagonal Size | 2.26 Inch |
| Number of dots | 16 Characters (58 dots) 2 Lines |
| Module size | 180.00(W)x36.00(H)x4.0(T) |
| Operating Temperature | -40 to 70 C |
The module uses a US2066 controller driver.
Power up VDD first, then send Display off command and initialize before powering up VCC.
