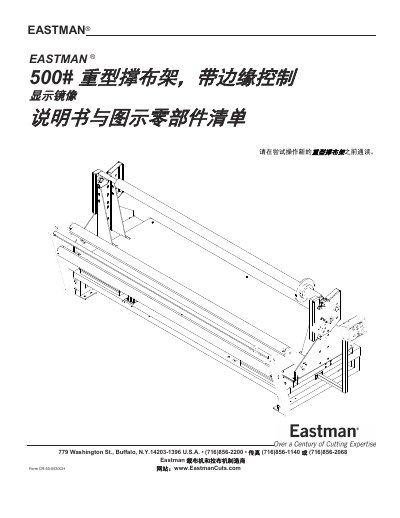

The Eastman 500# Heavy Fabric Spreader Instruction Manual provides safety guidelines, installation steps, operation procedures, and maintenance instructions.
This manual explains safe use of the Eastman 500# heavy fabric spreader, including general safety precautions, required protective equipment, and warning symbols. It emphasizes that all electrical work must be performed by qualified electricians and that safety devices must never be disabled.
The guide covers installation of the spreader, power connection, threading of fabric, roll‑brake adjustment, running adjustments, edge‑control tuning, and routine maintenance. Detailed diagrams of the control box and parts lists are included to aid setup and service. This manual is written in Chinese.
| Maximum fabric roll weight | 500 lbs (227 kg) |
|---|---|
| Edge accuracy | 1/8" (±3 mm) |
| Power requirements | 110 V / 220 V (50/60 Hz) |
| Maximum roll diameter | 762 mm (30 in.) |
| Maximum roll width | 2743 mm (108 in.) |
| Machine weight | 450 lbs (205 kg) |
It can handle fabric rolls up to 500 lbs (227 kg).
The machine and edge‑control probe should be cleaned daily.
It can be powered by either 110 V or 220 V (50/60 Hz).
