E Ink Segmented Displays Evaluation Guide Version 2.0

This guide provides background, benefits, and electronics ecosystem details for E Ink Segmented Displays, including driving specifications and connection…

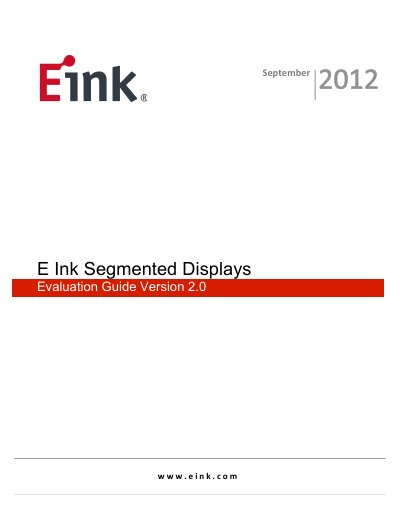

E Ink Segmented Displays Evaluation Guide Version 2.0 - cover page
Brand
e-Ink
Category
Other Electronics
Document type
Product Leaflet
Language
English
Pages
12
File format
PDF
File size
1.5 MB
Published
16 October, 2026
Updated
16 October, 2026
MD5 checksum
BFAE1845AE7A414B86C20B71060331A9
PDF
E Ink Segmented Displays Evaluation Guide Version 2.0 PDF

About this manual

This document serves as an evaluation guide for E Ink Segmented Displays, covering the technology background, construction, and benefits such as ultra-low power consumption and ruggedness. It details the electronics ecosystem required for operation, distinguishing between 5V and 15V Segmented Display Cells (SDCs) and Segmented Display Modules (SDMs).

What's inside

  • E Ink Background
  • How Does E Ink Work
  • Segmented Display Construction
  • Benefits of E Ink Segmented Displays
  • Design Examples
  • The Electronics Ecosystem
  • 5 Volt Segmented Display Cell
  • 15 Volt Segmented Display Cell
  • Segmented Display Module
  • Connecting E Ink Displays

Specifications

Refresh Rate (5V)720 milliseconds
Refresh Rate (15V)240 milliseconds
Display Thickness380 and 560 microns
Viewing Angle180 degree
Operating Temperature25C

Frequently asked questions

What is the refresh rate for a 5V Segmented Display Cell?

The refresh rate is 720 milliseconds.

What is the refresh rate for a 15V Segmented Display Cell?

The refresh rate is 240 milliseconds.

What is the recommended bond line temperature for ACF tape connections?

The recommended temperature is 135 - 150 °C.

Download PDF (1.5 MB)
