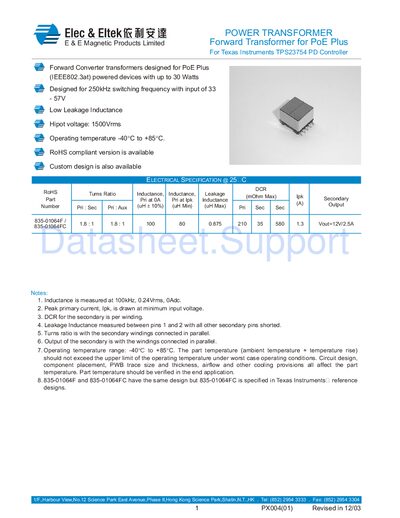

Datasheet for the E & E Magnetic 835-01064F forward converter transformer designed for PoE Plus up to 30 W.
The 835-01064F is a forward‑converter transformer intended for Power‑over‑Ethernet (PoE) Plus applications, delivering up to 30 W. It is compatible with Texas Instruments TPS23754 PD Controller and meets IEEE802.3at requirements.
Key specifications include a 33‑57 V input range, 250 kHz switching frequency, 12 V @ 2.5 A output, 1.8 : 1 turns ratio, and RoHS compliance. Mechanical data list a typical weight of 6.6 g and dimensions suitable for tape‑and‑reel packaging.
| Input voltage | 33‑57 V |
|---|---|
| Switching frequency | 250 kHz |
| Output voltage / current | 12 V @ 2.5 A |
| Weight | 6.6 g |
| Operating temperature | -40 °C to +85 °C |
It operates with an input voltage of 33 V to 57 V.
The secondary delivers 12 V at 2.5 A.
Yes, a RoHS‑compliant version is available.
It can operate from –40 °C up to +85 °C.
