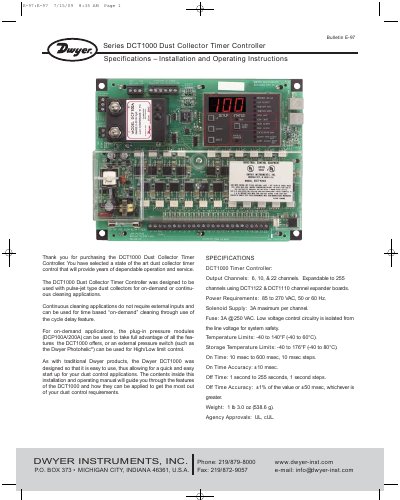

Installation and operating instructions for the Dwyer DCT1000 Dust Collector Timer Controller, covering setup, programming, wiring, and maintenance.
This manual provides installation and operating instructions for the Dwyer DCT1000 Dust Collector Timer Controller. The device is designed to control pulse-jet type dust collectors for on-demand or continuous cleaning applications using time-based cycles or external pressure inputs.
The document details the physical installation, including power requirements (85-270 VAC) and terminal connections for solenoids and switches. It also covers programming procedures for timing parameters such as On Time, Off Time, High/Low limits, and Cycle Delay, along with maintenance support and diagnostic error codes.
| Output Channels | 6, 10, & 22 channels. Expandable to 255 channels using DCT1122 & DCT1110 channel expander boards. |
|---|---|
| Power Requirements | 85 to 270 VAC, 50 or 60 Hz |
| Solenoid Supply | 3A maximum per channel |
| Fuse Rating | 3A @ 250 VAC |
| Temperature Limits (Operating) | -40 to 140°F (-40 to 60°C) |
| On Time Range | 10 msec to 600 msec, 10 msec steps |
| Off Time Range | 1 second to 255 seconds, 1 second steps |
The controller operates on a universal power supply between 85 VAC and 270VAC at either 50 or 60 Hz.
Yes, it can use an external pressure switch such as the Dwyer Photohelic for High/Low limit control in on-demand applications.
The maximum solenoid supply is 3A per channel.
