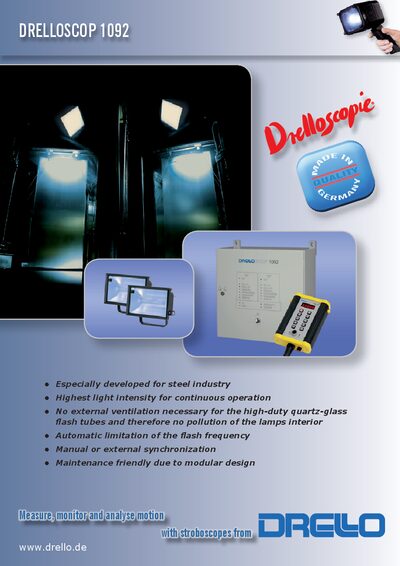

The Drello DRELLOSCOP 1092 stroboscope datasheet provides specifications, dimensions, power requirements and features for steel industry visual inspection.
The DRELLOSCOP 1092 is a high‑intensity stroboscope designed for visual quality inspection in the steel industry, offering modular design and splash‑proof housing. It can be mounted on walls or integrated with a remote control unit for flexible operation.
Key features include automatic flash‑frequency limitation, manual or external synchronization, a 5‑digit 7‑segment display, and options such as RS232 interface. The datasheet lists detailed technical data for the power box, lamps, remote control, and illumination performance.
| Flash frequency | 60–130 s⁻¹ |
|---|---|
| Flash energy (max) | 5.5 J per flash |
| Power consumption (max) | 1500 W |
| Electrical supply voltage | 230 VAC, 40–60 Hz |
| Power box dimensions (W × H × D) | 500 × 500 × 225 mm |
| Power box weight | 16 kg |
| Protection class | IP54 |
| Luminosity at 1500 mm | 1780 lx |
It has protection class IP54.
The flash frequency can be set between 60 and 130 s⁻¹.
It operates from a 230 VAC supply at 40–60 Hz with a maximum power consumption of 1500 W.
