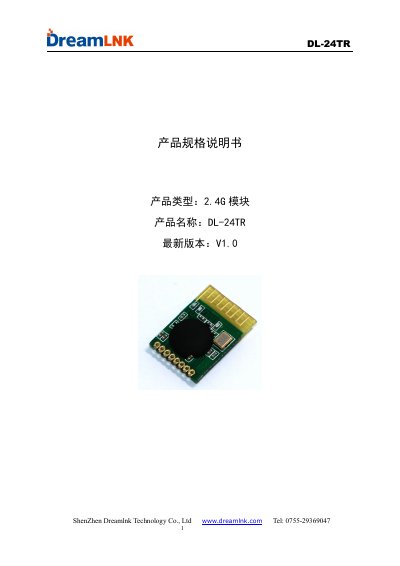

The Dreamlnk DL-24TR 2.4 GHz wireless module specification sheet details features, electrical characteristics, pinout, and application guidelines.
The DL-24TR is a compact 2.4 GHz wireless transceiver module based on the TI‑Chipcon CC2500 chip. It integrates all RF components, includes a PCB‑mounted antenna, and offers programmable modulation, data rates, and power settings for easy integration into smart‑home, toy, and IoT devices.
The document provides important safety precautions, pin definitions, mechanical dimensions, RF performance data, connection guidelines, operating modes, data transmission methods, programming information, and troubleshooting steps to help designers implement the module safely and efficiently. This manual is written in Chinese.
| Supply voltage | 1.8~3.6 V DC |
|---|---|
| Center frequency | 2433 MHz |
| Frequency range | 2400~2483.5 MHz |
| Output power (configurable) | -30~+1 dBm |
| Receive sensitivity | -105 dBm (2.4 Kbps) |
| Receive current | <15 mA (2.4 Kbps) |
| Transmit current | <25 mA |
| Standby current | <2 µA |
| Data rate | 1.2~500 Kbps |
| Operating temperature | -40~85 °C |
| Storage temperature | -50~125 °C |
| Antenna impedance | 50 Ω |
The module operates from 1.8 V to 3.6 V DC, with 3.3 V recommended for typical use.
The antenna must be placed outside any metal enclosure and kept away from system ground to avoid severe signal attenuation.
In open space the module can transmit over 100 meters at a data rate of 2.4 Kbps.
Handle the module in an ESD‑protected area, keep it dry, avoid liquid contact, use a separate stable power supply, and do not exceed the specified voltage range.
