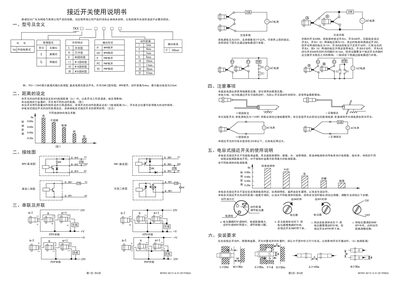

The Dongqi TKX series proximity switch user manual provides model meanings, distance settings, wiring diagrams, and installation guidelines.
This manual introduces the TKX series proximity switches, explaining the model codes, physical shapes (e.g., M12 cylindrical), output types (NPN/PNP, normally open/closed), and the selectable action distances ranging from 2 mm to 35 mm. It also details the maximum output current of 200 mA.
The document covers distance‑setting recommendations, wiring diagrams with color‑coded leads, series and parallel connection methods (including the need for relays when using multiple switches), safety precautions such as limiting lead length to 200 m and avoiding high‑frequency fields, and specific instructions for capacitive‑type switches. This manual is written in Chinese.
| Maximum output current | 200 mA |
|---|---|
| Mounting shapes | Square pillar, raised characters, M8/M12/M18/M30 cylindrical |
| Wiring lead colors | Brown (BN), Black (BK), Blue (BU) |
| Recommended AC supply voltage | 220 V |
The maximum output current is 200 mA.
