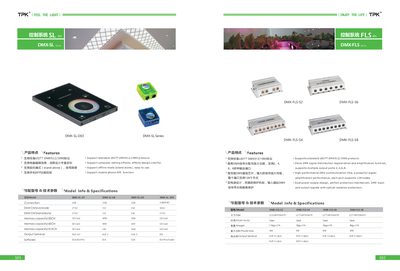

The DMX FLS and SL series control systems are DMX512-compatible units with various sizes, power ratings, and output ports, supporting offline mode and…
The DMX FLS and SL series provide flexible lighting control solutions that comply with the USITT DMX512/1990 protocol. Models range from the compact FLS‑S2 to the high‑capacity SL‑U9, offering options for different installation needs and output configurations.
Key features include signal distribution and amplification, dual‑power design with optical isolation, support for up to 128 nodes per port, offline (stand‑alone) operation, and mobile‑app control. Technical specifications such as dimensions, weight, power consumption and output terminals are listed for each model. This manual is written in Chinese.
| Dimensions (L×W×H) – DMX-FLS-S2 | 212 mm × 150 mm × 70 mm |
|---|---|
| Output Terminal – DMX-FLS-S2 | XLR‑3 x 2 pcs |
| Dimensions (L×W×H) – DMX-FLS-S4 | 277 mm × 150 mm × 70 mm |
| Output Terminal – DMX-FLS-S4 | XLR‑3 x 4 pcs |
It supports the standard USITT DMX512/1990 protocol.
Each output port supports up to 128 nodes.
Yes, the system supports offline (stand‑alone) mode for easy use.
