The DMT SBS micro borehole scanner provides 360° optical imaging for small-diameter boreholes with intrinsic safety for hazardous mining environments.
The DMT SBS micro borehole scanner performs 360° optical scans inside small‑diameter boreholes, generating objective wall images that can be stored digitally for quantitative analysis. Integrated orientation allows the images to be positioned in three‑dimensional space, supporting geological modeling for tunnel construction.

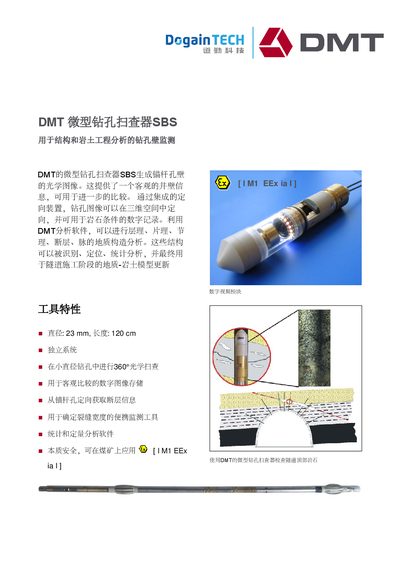

The system includes intrinsic safety certification for use in coal mines, a dedicated analysis software package for structural interpretation, and a portable tool for measuring fracture widths. It is suited for monitoring roof conditions, optimizing anchor design, and tracking time‑dependent changes in the rock mass. This manual is written in Chinese.
| Diameter | 23 mm |
|---|---|
| Length | 120 cm |
| Safety Rating | Intrinsic safety (Ex ia I) |
The scanner has a diameter of 23 mm.
It is intrinsically safe and approved for use in coal mines (Ex ia I).
The images are processed with DMT analysis software for geological structure interpretation.
