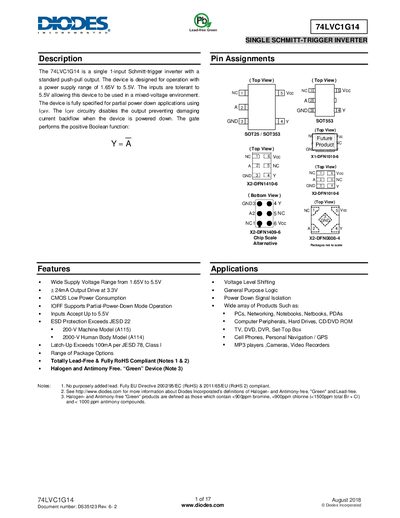

The Diodes 74LVC1G14 datasheet provides specifications, electrical characteristics, package options, and ordering information for the single Schmitt‑trigger…
The 74LVC1G14 is a single‑input Schmitt‑trigger inverter with a standard push‑pull output, designed for operation from 1.65 V to 5.5 V and tolerant to 5.5 V inputs.
The device is offered in multiple SOT and DFN packages, includes IOFF power‑down mode, meets RoHS and “Green” standards, and provides detailed electrical, thermal, and switching characteristics.
| Supply Voltage Range | 1.65 V to 5.5 V |
|---|---|
| Output Drive Current | ±24 mA at 3.3 V |
| Input Voltage Tolerance | Up to 5.5 V |
| ESD Protection (Machine Model) | 200 V |
The device operates from 1.65 V to 5.5 V.
Yes, it is fully RoHS compliant.
The inverter can source or sink up to ±24 mA at 3.3 V.
