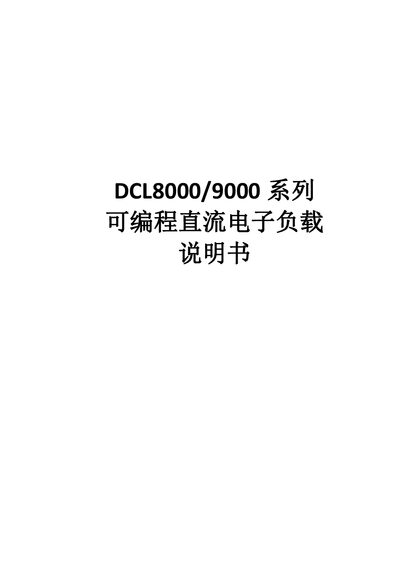

The Dingchen Electronics DCL8000/9000 series programmable DC electronic load user manual provides specifications, installation, operation, safety, and…
This manual covers the DCL8000/9000 series programmable DC electronic load produced by Dingchen Electronics. It includes safety notices, warranty information, and detailed instructions for inspection, installation, and proper use of the device.
The guide describes the product’s features, functional operation modes, technical specifications, RS‑232 communication interface, and wiring details. It also provides environmental requirements, dimension data for different models, and contact information for support. This manual is written in Chinese.
| Input Voltage | AC220/100 V ±10 % |
|---|---|
| Operating Temperature | 0 °C ~ 40 °C |
| Operating Humidity | 20 % ~ 80 % (non‑condensing) |
| Storage Temperature | -10 °C ~ 60 °C |
| Maximum Altitude | ≤ 2000 m |
| Default Fuse Rating | 250 V / 1.5 A (standard), 250 V / 2.5 A for 110 V input |
Replace the default 250 V / 1.5 A fuse with a 250 V / 2.5 A fuse when using a 110 V AC input.
Verify all markings, ensure the voltage selector matches the power source, confirm the fuse is installed, and check that the enclosure is closed and ventilation openings are not blocked.
Use a standard RS‑232 cable to connect the device’s DB‑9 male connector to a computer COM port, wiring pins 2 (TXD), 3 (RXD), and 5 (GND) as defined.
The device may be operated in ambient temperatures from 0 °C to 40 °C.
