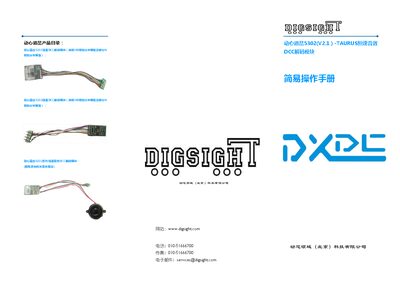

This quick start guide explains how to install and operate the Digsight 5302(V2.1) DCC decoder module for HO and N scale model trains.
The 5302(V2.1) DCC decoder module provides constant‑speed sound effects for model locomotives. It is compatible with HO‑level and some N‑level train models and includes a speaker, an 8‑pin connector, and a charge‑assist module.
The guide walks you through unpacking, mounting the speaker, inserting the module into the locomotive’s circuit board, and connecting the charge module. It also lists the button functions (F1‑F8) for various sound effects and provides the default CV values needed for configuration. This manual is written in Chinese.
| Default locomotive address | 3 |
|---|
Remove the module from the packaging, mount the speaker in the locomotive body, insert the speaker lead into the speaker socket, and plug the 8‑pin connector into the circuit board as shown in the steps.
Pressing F1 once starts a long whistle sound; pressing it again stops the whistle.
