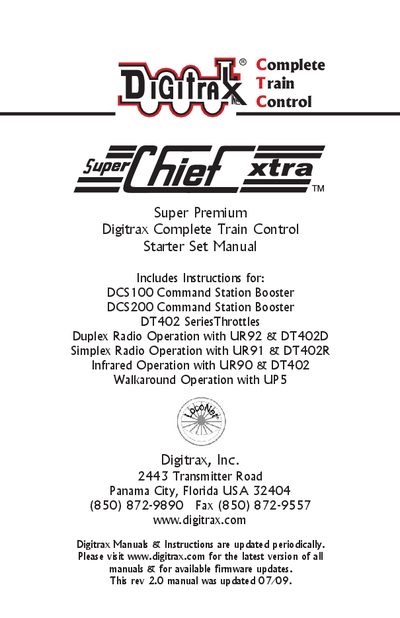

Digitrax Super Chief Xtra Complete Train Control Starter Set Manual

About this manual

This manual covers the complete Digitrax Super Chief Xtra Starter Set, including the DCS100 and DCS200 command stations, DT402 series throttles, UR92 duplex radio transceiver, and UP5 universal panel. It explains how to connect power, configure LocoNet, and install each component, with quick‑start guides for basic operation and detailed sections on advanced wiring, programming, and troubleshooting.

Additional chapters describe LocoNet architecture, power district planning, tetherless operation, and the use of optional accessories such as the DB150 booster, PM42 power manager, and AR1 auto‑reversing unit. Warranty, FCC information, and a glossary are provided at the end of the document.

What's inside

• Introduction
• Super Chief Xtra Quick Start Guide
• Super Chief Xtra Quick Start Duplex Radio Operation
• DT402 Installation
• LocoNet: The Digitrax Difference!
• Advanced Installation of Digitrax On Your Layout
• DCS100/200 Control Panel
• DT402 Series Throttle Control Panel
• Troubleshooting Problems
• Warranty and Repair Information

Specifications

Frequently asked questions

What is the coverage area of the UR92 duplex radio transceiver?

A single UR92 provides coverage for a circle about 300 feet in diameter.

How long is the warranty for Digitrax products?

Digitrax offers a one‑year warranty against manufacturing defects and accidental damage.

Where can I find instructions to replace the DCS100 CMOS battery?

See section 8.0 “DCS100 CMOS Battery Replacement” in the manual for the replacement procedure.
