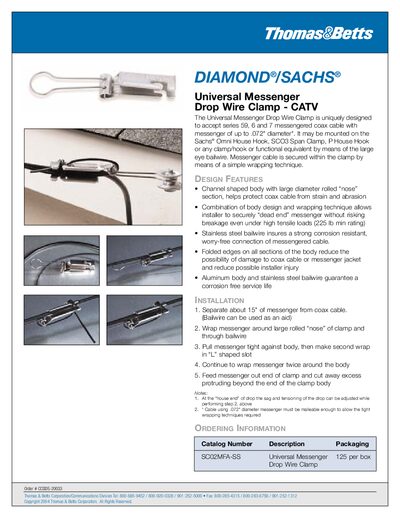

The Diamond Sachs CATV Universal Messenger Drop Wire Clamp product leaflet details design, installation steps, ordering information, and specifications.
The Universal Messenger Drop Wire Clamp is designed for CATV applications, accepting messengered coax cable up to .072" diameter and providing a minimum load rating of 225 lb. Its aluminum body, stainless‑steel bailwire, and rolled‑nose design protect the cable from strain, abrasion, and corrosion.
The leaflet also includes product data for related hardware such as telephone drop wire clamps, span clamps, one‑ and two‑hole clamps, tap brackets, house hooks, drop wire hooks, hand tools, and signal‑security trap shields and brackets, each with ordering numbers and material specifications.
| Minimum load rating | 225 lb |
|---|---|
| Maximum messenger diameter | .072" |
| Body material | Aluminum |
| Bailwire material | Stainless steel |
| Corrosion resistance | Corrosion‑free service life |
It is rated for a minimum load of 225 lb.
The clamp accepts messengered coax cable up to .072 inch in diameter.
