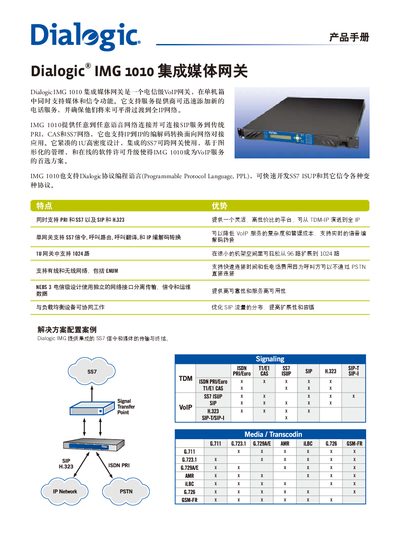

The Dialogic IMG 1010 Media Gateway User Guide provides an overview, technical specifications, routing, and configuration details for this telecom‑grade…
This manual describes the Dialogic IMG 1010, a 1U high‑density telecom‑grade VoIP gateway that supports both media and signaling functions. It can connect SIP services to traditional PRI, CAS, and SS7 networks and offers IP‑to‑IP codec conversion for seamless migration to all‑IP networks.
The guide includes routing capabilities, supported codecs, power requirements, physical dimensions, redundancy options, channel capacity, I/O interfaces, and the full set of TDM and IP signaling protocols, along with management and monitoring features such as GUI, SNMP, and radius authentication. This manual is written in Chinese.
| Power supply voltage (DC) | -48 VDC (range -40 to -60 V) |
|---|---|
| Dimensions | 1.72 in (43.7 mm) H × 17.25 in (438.2 mm) W × 19.00 in (482.6 mm) D |
| Weight | 18 lbs (8.1 kg) |
| Supported audio codecs | AMR, iLBC, G.711, G.723.1, G.729 A/B, G.729 E/G, GSM-FR, G.726 |
| VoIP channel capacity per 1U | 96‑1024 channels |
| TDM channel capacity per 1U | 96‑768 channels |
It requires a -48 VDC power supply, with an acceptable range from -40 V to -60 V.
The IMG 1010 can support up to 1,024 VoIP channels per 1U rack space.
Supported codecs include AMR, iLBC, G.711, G.723.1, G.729 A/B, G.729 E/G, GSM‑FR, and G.726.
