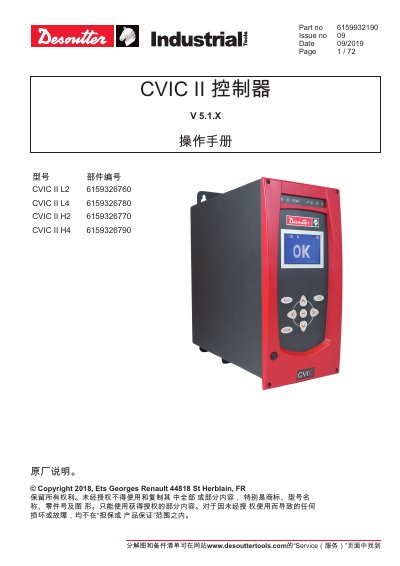

This manual provides operating instructions for the Desoutter CVIC II controller series (L2, L4, H2, H4), covering safety, installation, programming, and…
The Desoutter CVIC II controller is designed to automatically control electric tightening systems by measuring tool power consumption and monitoring tool angle. The document covers four specific models: CVIC II L2, CVIC II L4, CVIC II H2, and CVIC II H4, which differ in their ability to drive low-torque versus high-torque tools and the number of tightening cycles they can run simultaneously.
The manual details the complete user workflow, including initial setup (installation, language selection, date/time setting), navigating the control interface for monitoring results, programming tightening cycles and parameters via the menu system or PC software (CVIPC 2000), configuring peripherals like Ethernet and PLCs, performing maintenance tasks such as battery replacement, and troubleshooting common faults. This manual is written in Chinese.
| Weight | 5.9 kg |
|---|---|
| IP Rating | 40 |
| Operating Temperature | 0 / +40°C |
| Voltage Input | 85 – 125VAC / 180 – 250VAC |
| Frequency | 50 / 60 Hz |
| Average Power (L2) | 0.5 kW |
| Peak Power (H4, 35m cable) | -4.5kW |
The controller is designed to drive and monitor EC/MC series current-controlled tools.
The H version allows running up to 15 tightening cycles.
If the motor temperature exceeds 100°C, the controller stops the tool; it can restart once the temperature drops below 80°C.
