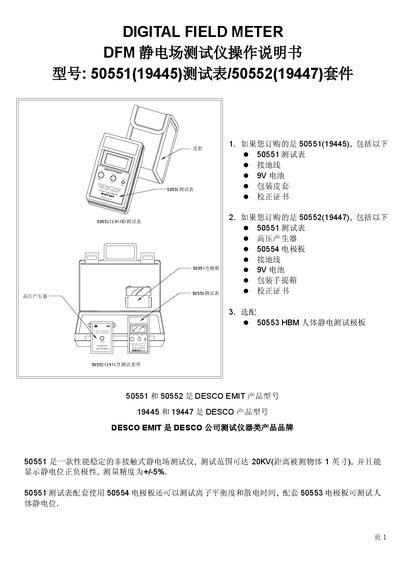

Operating manual for DESCO EMIT 50551/50552 static field testers, covering setup, zeroing, measurements and accessories.
This manual provides step‑by‑step instructions for using the DESCO EMIT 50551 and 50552 static field testers. It explains how to power on the device, perform zero calibration, and measure surface static voltage at a standard 1‑inch distance.
The guide also details the optional electrode plates (50554, 50553) for ion‑balance and discharge‑time testing, lists the contents of each kit, and outlines the one‑year warranty terms. This manual is written in Chinese.
| Measurement range | up to 20 kV at 1 inch |
|---|---|
| Measurement accuracy | ±5 % |
| Analog output | ±1 V = ±10 kV |
| Digital output voltage | ±1100 VDC, ±20 % |
| Power source | 9 V alkaline battery |
Press and hold the ON/ZERO key while pointing the meter at a grounded conductor; release the key when the display reads 0.00 to complete zeroing.
The 50551 kit contains the test meter, a grounding wire, a 9 V battery, a protective case, and a calibration certificate.
