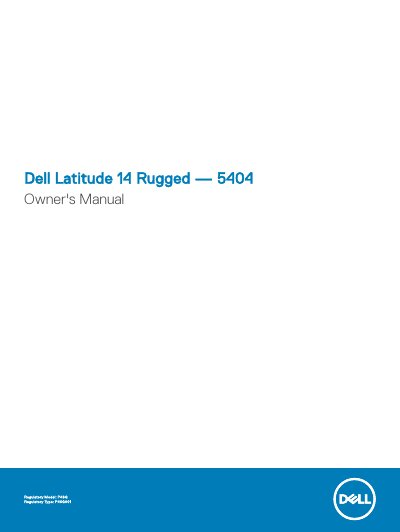

Service manual for the Dell Latitude 14 Rugged 5404, covering component removal, installation, system setup, diagnostics, and specifications.
This document serves as a service manual for the Dell Latitude 14 Rugged 5404 laptop. It provides detailed instructions for working on the computer, including safety guidelines, procedures for turning the system off and on, and steps for after working inside the chassis. The guide emphasizes safety precautions such as disconnecting power and grounding oneself to avoid electrostatic discharge.
| Chipset | Intel Mobile Express Series 6 chipset |
|---|---|
| DRAM bus width | 64-bit |
| Flash EPROM SPI | 32 Mbits |
| PCIe Gen1 bus | 100 MHz |
| Processor Types | Intel Core i3 series, Intel Core i5 series, Intel Core i7 series |
| L3 cache | up to 4 MB |
| External bus frequency | 1600 MHz |
| Memory connector | two SODIMM slots |
| Memory capacity | 4 GB, or 8 GB |
| Memory type | DDR3 SDRAM 1600 Mhz |
| Minimum memory | 4 GB |
| Maximum memory | 16 GB |
| Audio Type | four-channel high definition audio |
| Audio Controller | Realtek ALC3226 |
| Stereo conversion | 24-bit (analog-to-digital and digital-to-analog) |
Disconnect all power sources, ensure the work surface is flat and clean, and ground yourself to avoid electrostatic discharge.
No, you must use only the battery designed for this particular Dell computer to avoid damage.
The supported processors are Intel Core i3 series, Intel Core i5 series, and Intel Core i7 series.
