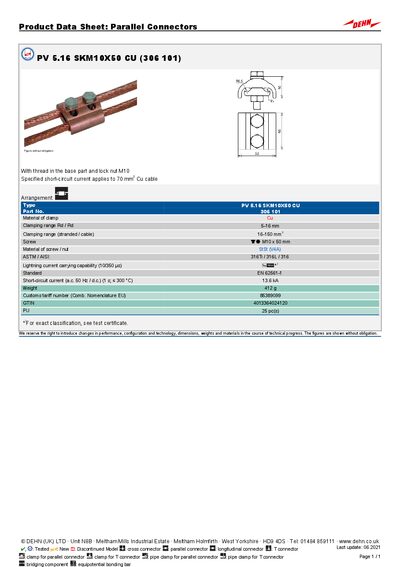

Product data sheet for DEHN PV 5.16 SKM10X50 CU parallel connectors, detailing material, clamping range, screw size, current ratings and weight.
This one‑page product data sheet provides the technical specifications for the DEHN PV 5.16 SKM10X50 CU parallel connector. It lists the material, dimensions, electrical ratings and regulatory identifiers for the component.
Key data include a copper clamp, a clamping range of 5‑16 mm (Rd/Rd) and 16‑150 mm² cable, an M10 × 50 mm screw, a short‑circuit rating of 13.6 kA, a weight of 412 g and the part number 306 101.
| Material of clamp | Cu |
|---|---|
| Clamping range (Rd / Rd) | 5‑16 mm |
| Clamping range (stranded / cable) | 16‑150 mm² |
| Screw dimensions | M10 × 50 mm |
| Material of screw / nut | StSt (V4A) ASTM / AISI: 316Ti / 316L / 316 |
| Short‑circuit current rating | 13.6 kA |
| Weight | 412 g |
| Customs tariff number | 85389099 |
| GTIN | 4013364024120 |
| Part number | 306 101 |
It clamps stranded cables from 5 mm to 16 mm (Rd/Rd) and cable cross‑sections from 16 mm² to 150 mm².
The short‑circuit current rating is 13.6 kA for a.c. 50 Hz / d.c. (1 s, ≤ 300 °C).
The connector weighs 412 g.
The part number is 306 101.
