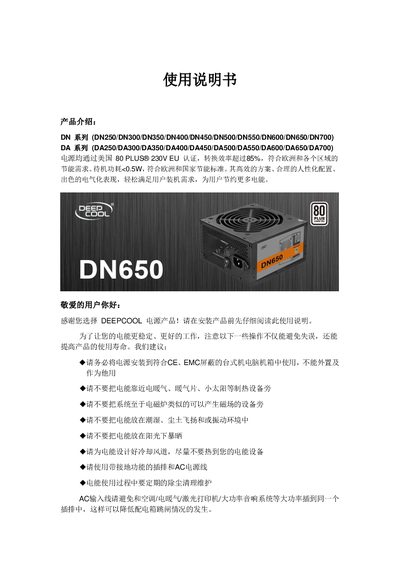

The DEEPCOOL Power Supply Series User Manual provides product features, specifications, installation guidelines, safety precautions, and usage instructions…
This manual introduces the DEEPCOOL DN and DA series power supplies, highlighting their 80 PLUS certification, high efficiency, and built‑in protection features. It also outlines recommended operating environments, such as installing the unit in a CE/EMC‑shielded desktop case and keeping it away from heat sources, moisture, and dust.
Detailed installation steps, connector descriptions, and a checklist are provided to ensure correct wiring of the 24‑pin ATX, EPS 8‑pin, PCI‑E, SATA, and peripheral connectors. The guide also covers troubleshooting, safety warnings, and after‑sales support contacts. This manual is written in Chinese.
| Form Factor | ATX 12V V2.31 |
|---|---|
| Certification | 80PLUS 230 EU |
| Dimensions (W×L×H) | 150×160×86 mm |
| Output Power | 250–700 W |
| Input Voltage | 115–230 V / 200–240 V |
| Efficiency | ≥85 % (typical load) |
| Fan Size | 120 mm |
| Power‑Good Time | 100–500 ms |
| MTBF | 120,000 hours |
They include over‑voltage, under‑voltage, short‑circuit, and over‑load protection.
The standby power consumption is less than 0.5 W.
