The DCS BFGC30G data sheet provides dimensions and clearance requirements for the 30" Liberty Grill.

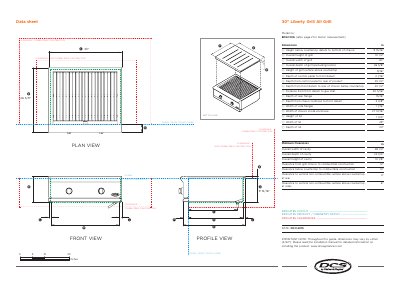

This data sheet lists the full set of dimensions for the 30" Liberty Grill (model BFGC30G) in both imperial and metric units, including overall height, width, depth, lid size and control‑panel measurements. It also shows the height of the grill surface above the countertop and the distance from the front datum to the gas inlet.
Installation clearances are detailed, specifying the required space to combustible and non‑combustible surfaces around the grill. The document notes a possible ±2 mm (3/32") variation and advises consulting the installation manual for complete mounting instructions.
| Overall height of grill | 10 1/2'' |
|---|---|
| Overall width of grill | 30'' |
| Overall depth of grill (excluding knobs) | 26 5/8'' |
| Height of grill surface above countertop | 9/16'' |
| Clearance from grill chassis to combustible construction | 12'' |
The grill measures 10 1/2" high, 30" wide and 26 5/8" deep (excluding knobs).
A minimum of 12" clearance is needed from the grill chassis to any combustible construction, and 12" clearance below the countertop to combustible surfaces.
