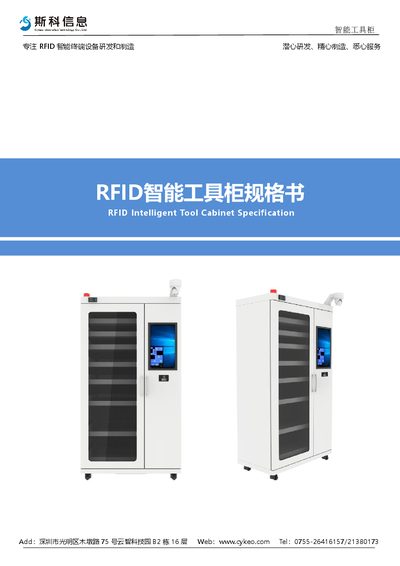

The CYKEO CA‑T3 RFID intelligent tool cabinet provides automatic tool management, one‑key inventory, data collection, and optional biometric access.
The CA‑T3 is an RFID‑enabled tool cabinet that complies with the ISO18000‑6C standard. It uses ultra‑high‑frequency RFID for real‑time inventory, smart storage, overdue alerts, voice prompts and abnormal warnings, and can be placed indoors or in a secure semi‑outdoor environment.
Key features include fully automatic borrowing/return tracking, a 10‑second one‑key inventory, real‑time data capture for analysis, and safety accountability with identity‑based access. The cabinet offers configurable screen sizes, multiple communication interfaces, and optional accessories such as fingerprint, facial recognition, and cameras. This manual is written in Chinese.
| Model | CA‑T3 |
|---|---|
| Operating System | Windows (optional Android) |
| CPU Configuration | I5, 4 GB + 128 GB (RK3399, 4 GB + 16 GB) |
| RFID Frequency Range | 840 MHz – 960 MHz |
| RFID Protocol | ISO18000‑6C (EPCC1G2) |
| Power Rating | ≤150 W |
| Dimensions (H×W×D) | 2000 mm × 1100 mm × 600 mm |
| Touchscreen Size | 14‑inch or 21.5‑inch capacitive |
The cabinet runs Windows and can be optionally equipped with Android.
It can complete a daily or monthly inventory in 10 seconds.
The unit uses AC 220 V, 50 Hz input with a maximum power consumption of 150 W.
