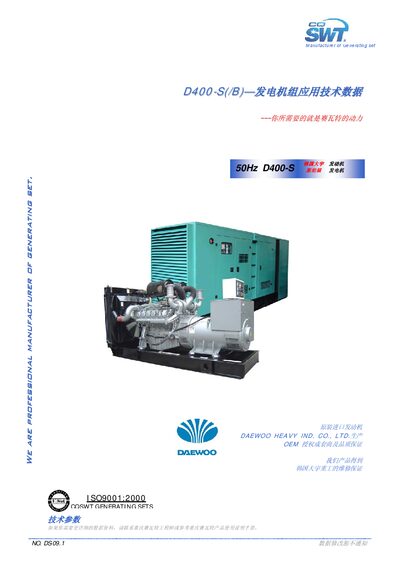

Technical specifications, dimensions, and accessory list for the CWSWT D400‑S generator set.
The CWSWT D400‑S generator set is a heavy‑duty unit equipped with a Daewoo P158LE‑S V‑type engine and a HCI544C brushless generator. It meets ISO3046, ISO8528, IEC34 and other international standards, and offers both standard and silent configurations.
The document provides detailed technical parameters, engine and generator data, controller information, dimensions, weight, and a comprehensive list of standard and optional accessories for installation and maintenance. This manual is written in Chinese.
| Rated Power (kW/kVA) | 360/450 |
|---|---|
| Frequency / Rated Speed | 50 Hz / 1500 rpm |
| Rated Voltage | 400 V / 230 V |
| Rated Current | 650 A |
| Engine Model | P158LE‑S |
| Generator Model | HCI544C |
| Motor Efficiency | 93.8 % |
| IP Protection Rating | IP23 |
| Open‑type Dimensions (L×W×H) | 3250 mm × 1390 mm × 1900 mm |
| Open‑type Weight | 2550 kg |
| Silent‑type Dimensions (L×W×H) | 3800 mm × 1550 mm × 2050 mm |
| Silent‑type Weight | 4050 kg |
The rated power is 360 kW (450 kVA).
It uses a Daewoo Heavy Industries P158LE‑S 8‑cylinder V‑type engine.
The unit is equipped with a GU320 controller featuring an LCD/LED display.
The silent version measures 3800 mm × 1550 mm × 2050 mm.
