The EB01-6MBI450U4-170 is a plug‑and‑play basic board for Fuji 6MBI450U4‑170 IGBT modules, offering driver integration and protection features.

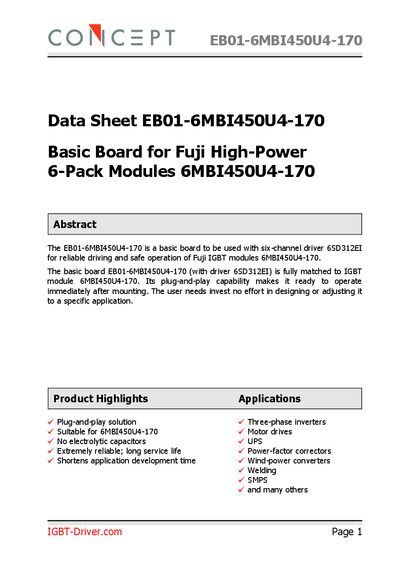

The EB01-6MBI450U4-170 basic board is designed to be used with the six‑channel driver 6SD312EI for Fuji high‑power 6‑pack IGBT modules. It provides a plug‑and‑play solution that requires no additional design effort and is suitable for applications such as three‑phase inverters, motor drives, UPS, power‑factor correction, wind‑power converters and more.
The board measures 162 × 100 mm with a height of 21 mm (30 mm with connector X1). It mounts by soldering onto the IGBT module and includes features like short‑circuit protection, a 3.65 V VCE‑monitoring threshold, 11.3 µs response time, and gate resistors of 1.2 Ω (turn‑on) and 6.8 Ω (turn‑off). Absolute maximum ratings include 3 W input power per channel, 35 kHz switching frequency, and a 1200 V DC link voltage.
| Dimensions | 162 x 100 mm |
|---|---|
| Height (including driver) | 21 mm |
| Operating temperature range | -40 °C to +85 °C |
| Gate turn‑on resistor (Rg(on)) | 1.2 Ω |
| Gate turn‑off resistor (Rg(off)) | 6.8 Ω |
The turn‑on gate resistor is 1.2 Ω and the turn‑off gate resistor is 6.8 Ω.
