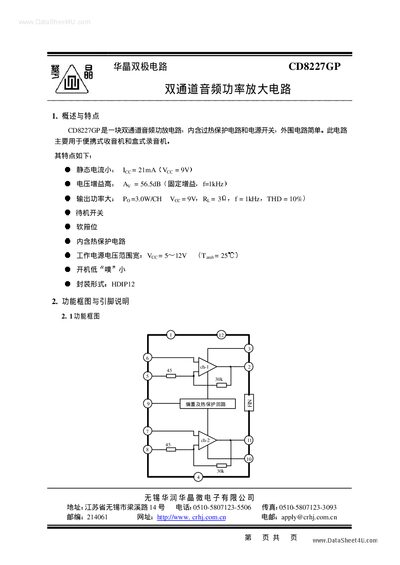

CRHJ CD8227GP Audio Power Amplifier Datasheet

Technical data sheet for the CRHJ CD8227GP audio power amplifier, including specifications, pinout and performance curves.

Brand: CRHJ
Category: Audio Power Amplifier
Document type: Datasheet
Language: Chinese
Pages: 6
File format: PDF
File size: 121 KB
Published: 29 September, 2026
Updated: 29 September, 2026
MD5 checksum: 209B24E84577DB1C7BB6587F8C3E6338
PDF: CRHJ CD8227GP Audio Power Amplifier Datasheet PDF

About this manual

The CD8227GP is an audio power amplifier designed for low‑power applications. The datasheet provides detailed electrical characteristics, pin definitions, and typical application circuits.

Key information includes supply voltage ranges, output power per channel, gain, THD, and thermal performance. Test and application schematics are also included to aid designers in integrating the device. This manual is written in Chinese.

What's inside

Features
Pin Description
Electrical Characteristics
Test Circuit
Application Circuit
Typical Performance Graphs
Thermal Characteristics
Reliability and Packaging

Specifications

Supply Current (ICC)	21 mA
Supply Voltage (VCC)	5 V – 12 V
Voltage Gain (AV)	56.5 dB
Output Power per Channel (PO)	3.0 W

Frequently asked questions

What is the typical output power of the CD8227GP?

The amplifier delivers about 3.0 W per channel.

What supply voltage range can the CD8227GP operate from?

It can be powered from 5 V up to 12 V.

What is the typical gain of the amplifier?

The voltage gain is specified as 56.5 dB.
