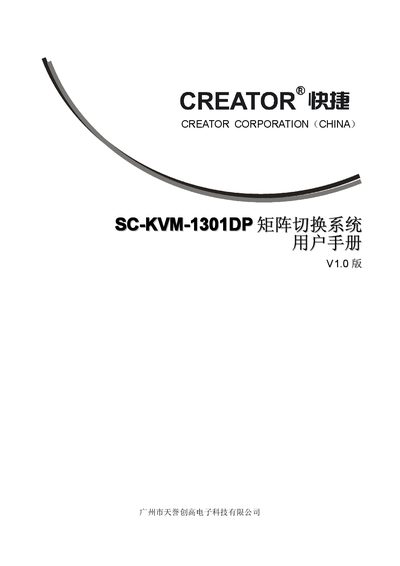

The Creator SC-KVM-1301DP Matrix Switch System User Manual provides operation instructions, specifications, and troubleshooting for the device.
The SC‑KVM‑1301DP is a matrix switch system that combines video signal scaling and switching functions. It supports multiple video formats such as CV, YPbPr, HDMI and VGA and is used in broadcast, conference rooms, large‑screen displays and education settings.
The manual covers safety precautions, installation steps, panel and menu operation, RS‑232 control protocol, technical specifications and common fault troubleshooting. It also explains how to adjust image settings, audio levels and how to perform system reset and firmware updates. This manual is written in Chinese.
| Supported resolution | 800×600 @60 Hz |
|---|---|
| VGA output gain | 0 dB |
| Audio I/O ports | 6 ports, 10‑pin |
| Power input | 100‑240 V / 2 A, 12 V DC output |
| Dimensions | 483 mm × 230 mm × 44 mm (L×W×H) |
| Weight | 1.9 kg |
| Operating temperature | -20 °C ~ +70 °C |
| Operating humidity | 10 % ~ 90 % |
In the fully exited menu state, press and hold the ENTER key for 3 seconds; the lights will flash and the device will start reading the EDID.
Verify that the power input is securely connected and that the unit is properly grounded.
Select the Brightness item under Image Settings in the menu and adjust the level.
