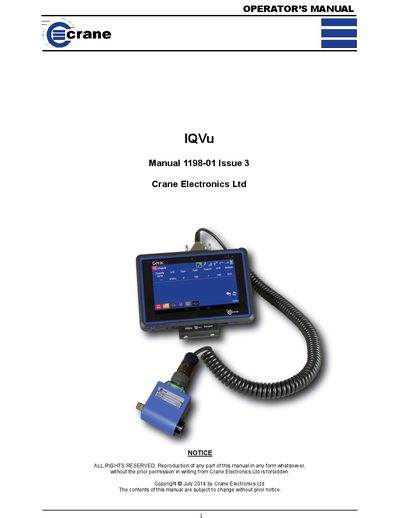

The Crane 1198-01 IQVu operator's manual provides setup, operation, safety guidelines, and specifications for the torque data collector.
The IQVu is a torque data collector with a 7‑inch rugged tablet, designed for manufacturing and quality environments. It features a tempered‑glass display, multi‑touch operation (including with gloves), and supports bi‑directional torque, angle, pulse, and other measurement modes. The device stores up to 16 GB of data, includes a 5 MP camera, GPS, and can export results via USB or email.
The manual covers packing contents, care and storage, battery charging (6 hours to full charge, 7600 mAh capacity for about 8 hours of use), connections (USB 2.0, Bluetooth v2.1+EDR, WLAN 802.11 b/g/n), and detailed operation of Check, Job, and Round modes. Safety warnings, user privileges, and appendices with statistical formulas are also provided.
| Operating temperature range | -20 to +50 °C |
|---|---|
| Storage temperature range | -20 to +50 °C |
| Humidity (non‑condensing) | 10‑75 % |
| IP rating | IP40 (indoor) / IP65 certified |
| Battery capacity | 7600 mAh |
| Battery life (normal use) | ≈8 hours per shift |
| Screen size | 7.0 inches |
| Screen resolution | 1024 × 600 pixels |
| Processor | 1 GHz Dual‑Core |
| Operating system | Android 4.1 |
| Internal storage | 16 GB (Micro SDHC up to 32 GB) |
| Dimensions (W × L × H) | 218 mm × 162 mm × 44 mm |
| Weight | 1.04 kg |
| Connectivity | USB 2.0, Bluetooth v2.1+EDR, WLAN 802.11 b/g/n |
| Camera | 5 MP auto‑focus |
It takes about 6 hours to fully charge the internal 7600 mAh battery.
The device can operate from –20 °C to +50 °C.
Yes, the IQVu can be used while charging, subject to temperature constraints.
It supports USB 2.0, Bluetooth v2.1+EDR (class 2), and Wi‑Fi (802.11 b/g/n).
