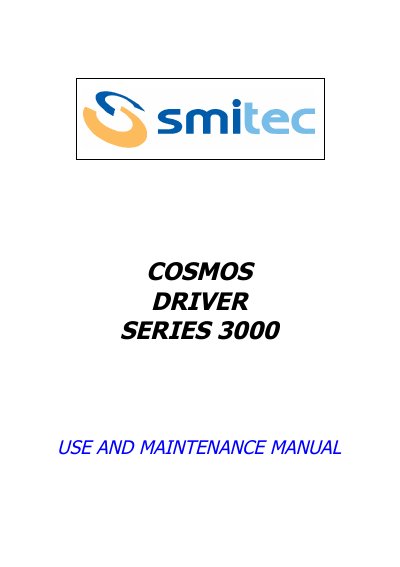

This manual covers the safe use, installation, operation, error codes, and maintenance of the COSMOS Driver Series 3000 for brushless and asynchronous motors.
The COSMOS Driver Series 3000 is a digital driver designed for sinusoidal electromotive force motors and three-phase asynchronous motors. It features an intelligent IGBT module (IPM) and a 32-bit micro-controller, allowing flexible control via field bus or a removable VISIO keyboard interface.
The document provides comprehensive instructions on safety precautions, electrical installation including power and signal wiring, and the configuration of various connectors such as motor output, encoder inputs, and field buses like Sercos III and FlxIO. It also details operator interface functions, LED status indicators, error code interpretation, firmware updates via USB, and maintenance procedures.
| Protection degree | IP20B |
|---|---|
| Ambient temperature at rated currents | 0 ÷ +40°C |
| Ambient humidity | 5 ÷ 85% non condensing |
| Altitude at rated current | 0 ÷ 1000m |
| Weight (Type 315X) | 1,8 kg |
| Weight (Type 325X) | 2,0 kg |
The series is designed for motors with sinusoidal electromotive force and three-phase asynchronous motors.
The user must ensure the driver has been switched off at least 10 minutes earlier to avoid dangerous voltage from condensers.
The drivers can operate at an altitude of up to 1000m without derating.
