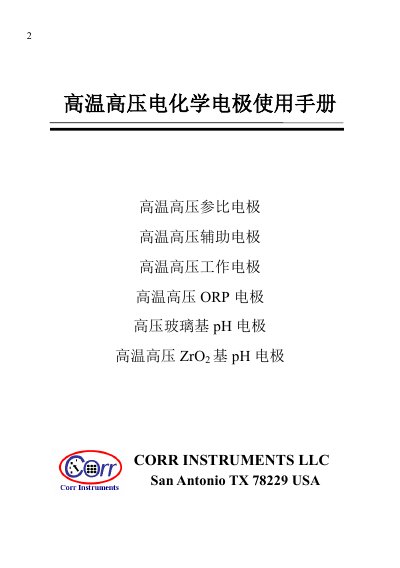

User manual for CORR Instruments' T220 P2200‑R high‑temperature, high‑pressure electrochemical electrode, covering safety, installation, calibration and…
This manual provides detailed information on the high‑temperature, high‑pressure electrochemical electrode series, including reference, auxiliary, working, ORP and glass‑based pH electrodes. The electrodes are sealed with the patented QUEON® material and are rated for up to 350 °C and 50 MPa (7500 psi), making them suitable for demanding environments such as nuclear, petrochemical, aerospace and deep‑sea research.
Safety is emphasized throughout: users must understand high‑pressure hazards, use Swagelok fittings, avoid rotating components, and keep personnel away from the test area during pressurization. The guide also explains proper cleaning, storage, and calibration procedures to ensure reliable performance and longevity of the electrodes. This manual is written in Chinese.
| Maximum operating temperature | 350 °C |
|---|---|
| Maximum operating pressure | 50 MPa (7500 psi) |
| Voltage range | -2500 mV to +2500 mV |
| Accuracy | ± 7 mV |
| Sensitive element (reference electrode) | Ag/AgCl |
| Sealing material | QUEON® |
| QUEON® pressure rating at 25 °C | 13000 psi (90 MPa) |
| Helium leak rate (heated to 320 °C) | 2 × 10⁻⁸ cc He/sec |
Operators must understand high‑pressure hazards, be familiar with Swagelok fittings, read the manual carefully, avoid rotating any electrode components, and keep personnel away from the test area, preferably using a controlled or enclosed environment.
The electrode can operate up to 350 °C and 50 MPa (7500 psi).
