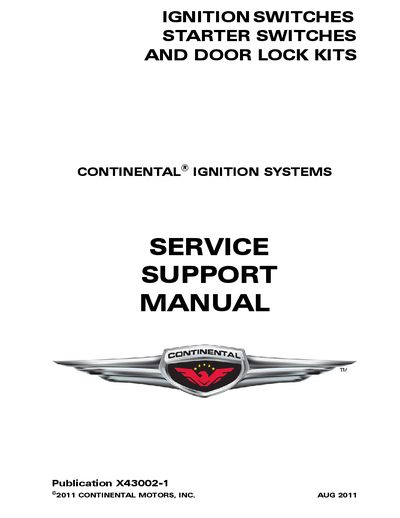

This manual provides maintenance, disassembly, assembly, testing, and installation instructions for Continental Motors ignition switches, starter switches…
This document is a service support manual for Ignition Switches, Starter Switches, and Door Lock Kits manufactured by Teledyne Continental Motors. It covers the complete maintenance lifecycle including disassembly, cleaning, inspection, assembly, testing, and installation procedures for these aircraft components.
The manual includes an illustrated parts list (IPL) with numerical lists of components and details on superseded or discontinued items. It also provides technical information such as rated voltage and current handling capabilities, insulation test specifications, and corrosion resistance data.
| Rated Voltage/Current | magneto primary voltage and/or 24 volts DC, 5 amps |
|---|---|
| Insulation Test | 1,000 volts DC to ground |
| Corrosion Resistance | 50 hr salt test per Fed. Spec. QQ-M-151 -A |
The publication number is X43002-1.
This revision replaces the front cover and list of effective pages for Publication Part No. X43002, dated October 1989.
The contacts are rated to handle magneto primary voltage and/or 24 volts DC at 5 amps.
