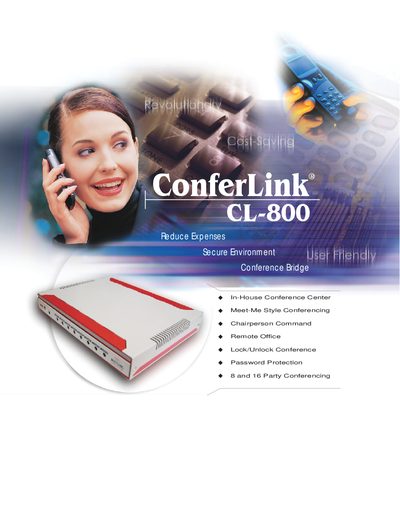

The ConferLink CL-800 conference bridge provides 8‑ or 16‑party meet‑me style conferencing with password protection and optional LAN conversion.
The ConferLink CL-800 is an in‑house conference bridge that supports meet‑me style conferencing for 8 or 16 parties. It offers chairperson command, remote office control, and password protection to secure meetings.
Key specifications include PSTN/PBX analog phone line connectivity, DTMF dialing, optional computer‑controlled software, and flexible power options (AC or DC 12 V). The unit measures 200 × 155 × 30 mm and operates in temperatures from 5 °C to 40 °C with 20‑80 % humidity.
| Telephone | PSTN/PBX Analog Phone Line |
|---|---|
| Dial method | DTMF |
| Channel | 8 Channel (single unit) 16 Channel (two units linked together) |
| Computer Controlled | Multisuns Discussions Software (optional) |
| Signal Indicator | Red |
| Record Output | -50dBm ~ 2dBm; 600 ohm |
| Power Input | AC 12V, 0.5A / DC 12V (country Specific) |
| Size | 200 x 155 x 30 mm (L×W×H) |
| Operating Temperature | 5 ~ 40 °C |
| Humidity | 20 ~ 80 % |
It supports 8 channels in a single unit or 16 channels when two units are linked together.
The system provides password protection and the chairperson can lock or unlock the conference.
It can be powered by AC 12 V, 0.5 A or DC 12 V, depending on the country.
