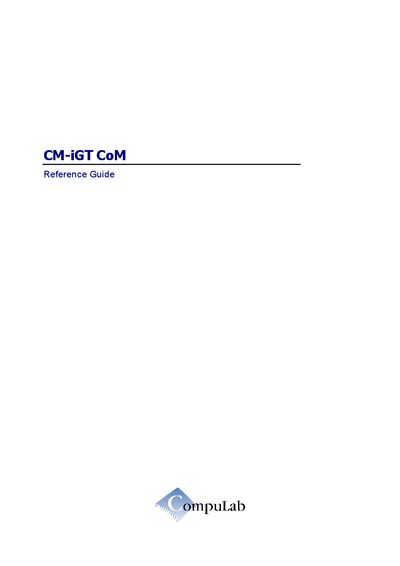

The CompuLab CM-iGT Reference Guide provides detailed specifications, block diagram, interface descriptions, and design guidelines for the CM-iGT…
This reference guide describes the CompuLab CM-iGT computer‑on‑module, a compact 75 mm × 65 mm × 8 mm board featuring an AMD G‑Series processor, up to 4 GB DDR3 memory, and multiple peripheral interfaces such as HDMI, DisplayPort, Gigabit Ethernet, PCIe, SATA, USB, CAN and GPIO.
The document includes a block diagram, core system component details, peripheral interface specifications, power and thermal characteristics, baseboard connector information, operational limits, and application notes for baseboard design, troubleshooting, Ethernet magnetics, and heat‑plate integration.
| Memory | 2 GB – 4 GB DDR3‑1066, 64‑bit |
|---|---|
| On‑board Storage | SSD up to 32 GB via SATA |
| Dimensions | 75 mm × 65 mm × 8 mm |
| Weight | 37 g |
| Operating Temperature (Commercial) | 0 °C to 70 °C |
| Main Power Supply Voltage | 4.75 V – 5.25 V (5V_S0 / 5V_S5) |
| USB Host Ports | Up to 9 USB 2.0 high‑speed ports |
The main power supply voltage (5V_S0 / 5V_S5) must be between 4.75 V and 5.25 V.
The module measures 75 mm × 65 mm × 8 mm and weighs 37 g.
It provides up to 9 USB 2.0 high‑speed host ports.
The module is offered in Commercial (0 °C to 70 °C), Extended (‑20 °C to 70 °C), and Industrial (‑40 °C to 85 °C) options.
