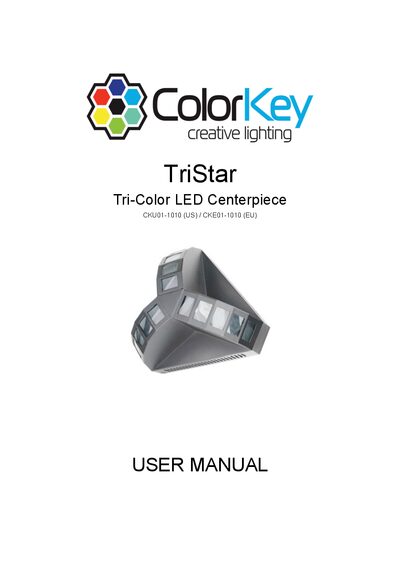

User manual for the ColorKey TriStar CKU01-1010 (US) / CKE01-1010 (EU) indoor LED centerpiece, covering installation, DMX setup, operation, and safety.
The manual introduces the ColorKey TriStar Tri‑Color LED Centerpiece, lists the packing contents, and provides important safety warnings such as keeping a minimum 5 m distance from other lighted objects and avoiding direct eye exposure. It emphasizes that installation, operation, and maintenance must be performed by qualified professionals.
Detailed sections cover DMX addressing, channel functions, and wiring, including the recommended 120 Ω termination resistor and conversion between 3‑pin and 5‑pin XLR connectors. Troubleshooting tips address common issues like loss of DMX control or sound activation. Technical specifications summarize power requirements, LED modules, consumption, temperature range, and IP rating.
| Power Supply | AC110V‑230V 60/50Hz |
|---|---|
| Light Source | 3 × 3 W RGB LED units |
| Power Consumption | 30 W |
| Channels | 7 channels |
| Control Methods | DMX, Master/Slave, sound activated, auto |
| Operating Temperature | Indoor –20 °C to 40 °C |
| Protection Rating | IP20 |
It must be installed a minimum distance of 5 meters (16’4”) away from any lighted objects.
A 120 Ω (1/4 W) resistor should be connected at the end of the DMX cable to avoid failures and interference.
Channel 1 controls motor position from 0‑127, rotation speed from 128‑191, and reverse rotation from 192‑255.
