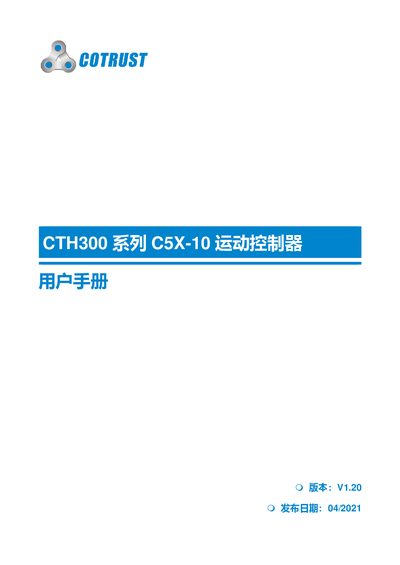

Chinese user manual for the Co-Trust CTH300 C5X-10 motion controller, covering installation, configuration, and programming.
The CTH300 C5X-10 motion controller from Co‑Trust is a programmable logic controller with high‑speed, high‑precision motion functions, digital inputs and high‑speed counters. The manual provides system overview, hardware specifications, wiring, and safety guidelines for engineers, installers, and maintenance personnel.
It also details configuration of the CODESYS development environment, communication options such as Modbus, CANopen, EtherCAT and EtherNet/IP, and includes application examples for high‑speed counting and CNC routines. This manual is written in Chinese.
| CPU instruction execution time | 0.015 µs/step |
|---|---|
| Floating‑point instruction speed | 1 µs/step |
| High‑speed bus data rate | 55 Mbps |
| Digital inputs (built‑in) | 10 |
| High‑speed counters (built‑in) | 6 |
| Power module input voltage range | 85–264 V AC |
| Power module output | 24 V DC / 2 A |
The power module accepts an input voltage of 85 V to 264 V AC.
The controller provides 10 built‑in digital inputs.
