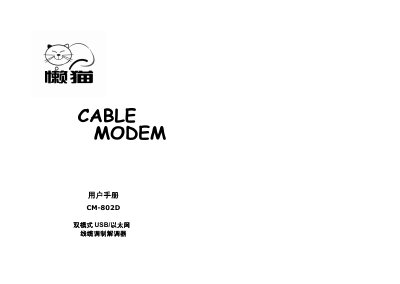

User manual for the CM CM-802D dual mode USB/Ethernet cable modem, covering installation, driver setup, TCP/IP configuration, and technical specifications.
This user manual provides instructions for the CM CM-802D dual mode USB/Ethernet cable modem. It details the product's features, including compatibility with Euro-DOCSIS 2.0 and CableLabs DOCSIS 2.0 standards, and its ability to connect to PCs via USB or Ethernet interfaces.
The guide covers hardware installation, including connecting the power adapter, RF cable, and network cables. It also explains how to install the USB driver on Windows systems and configure TCP/IP settings for internet access. Additionally, it includes a section on safety precautions and a list of technical specifications. This manual is written in Chinese.
| Standards Compliance | MCNS DOCSIS 1.0/1.1/2.0, EURODOCSIS 1.0/1.1/2.0 |
|---|---|
| Security Protocol | DOCSIS BPI, 56-bit DES, X.509 v3 |
| Operating Systems | Windows 98SE/2000/NT/Me/XP |
| Power Input | DC 9V, 800mA |
| Network Interface | 10/100Base-T Ethernet |
The modem uses a 10/100Base-T Ethernet connection, requiring a 10/100Base-T Ethernet card or USB interface on the computer.
The internal structure includes a high-frequency head, a bridge, a router, an encryption/decryption component, an SNMP agent, and an Ethernet hub.
