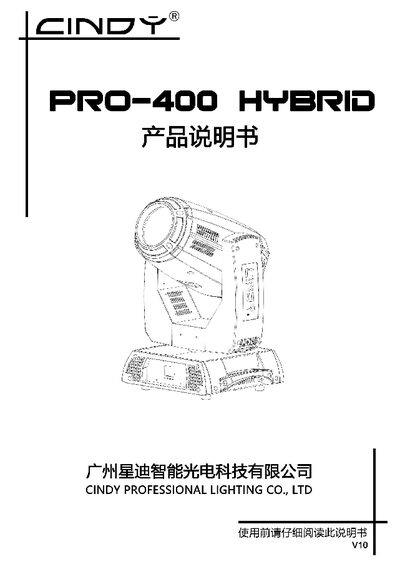

The Cindy PRO-400HYBRID user manual provides safety warnings, technical specifications, control instructions, error codes, and maintenance guidelines.
This manual covers all essential information for installing, operating, and maintaining the Cindy PRO-400HYBRID lighting fixture. It begins with safety warnings, detailing proper handling, installation distances, grounding, and protection against fire and electric hazards.
Subsequent sections describe the technical specifications, DMX control layout, display screen functions, error codes, channel configurations, console connections, and recommended maintenance procedures to ensure reliable long‑term performance. This manual is written in Chinese.
| Working Voltage | AC100V-240V 50/60Hz |
|---|---|
| Power Consumption | 580W |
| Light Source | Ushio 400W bubble |
| DMX Channels | 25‑channel complex mode / 20‑channel simple mode |
| Color Wheel | 13 colors + white + rainbow effect |
| Pattern Wheel 1 | 9 rotating patterns + white circle + rainbow effect |
| Pattern Wheel 2 | 13 fixed patterns + white circle + rainbow effect |
| Strobe Frequency | 0~15 Hz (adjustable) |
| Dimming Range | 0~100 % linear |
| Focus Control | Electric focus |
| Zoom Control | Electric zoom |
| Prism 1 | Six‑face gradient prism, speed & direction adjustable |
| Prism 2 | Eight‑prism, speed & direction adjustable |
| X‑Axis Rotation | 540°, 8‑bit/16‑bit adjustable |
| Y‑Axis Rotation | 260°, 8‑bit/16‑bit adjustable |
| Optical System | High‑precision quartz lens combo |
| Protection | Intelligent temperature over‑heat protection and anti‑interference circuit |
The product must be at least 0.5 meters away from any flammable or explosive items.
It offers two channel modes: a complex mode with 25 channels and a simple mode with 20 channels.
A 3‑pin XLR (卡龙) connector is used, with pin 1 ground, pin 2 negative, and pin 3 positive.
