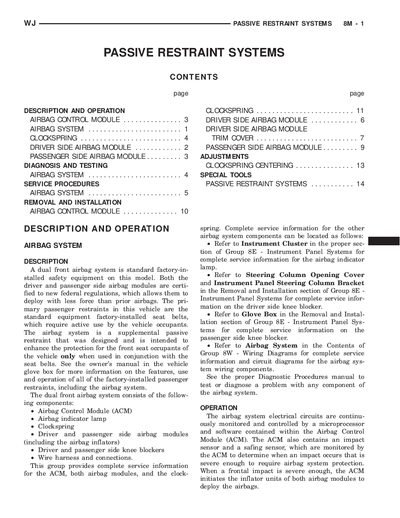

Chrysler Mopar Passive Restraint Systems Service Manual

About this manual

This document provides detailed service information for the Chrysler Mopar dual front airbag system, which is standard factory equipment. The system includes the Airbag Control Module (ACM), airbag indicator lamp, clockspring, and driver and passenger side airbag modules with knee blockers. The manual covers descriptions, operations, diagnosis, and testing procedures for these components.

What's inside

• Description and Operation
• Airbag System
• Clockspring
• Driver Side Airbag Module
• Passenger Side Airbag Module
• Diagnosis and Testing
• Service Procedures
• Removal and Installation
• Adjustments
• Special Tools

Frequently asked questions

What safety step must be taken before servicing the airbag system?

You must disconnect and isolate the battery negative cable and wait two minutes for the system capacitor to discharge.

What is the maximum storage temperature for the passenger airbag module?

The module must not be stored at temperatures exceeding 93° C (200° F).

What material is contained in the driver side airbag module inflator assembly?

The assembly contains sodium azide and potassium nitrate.
