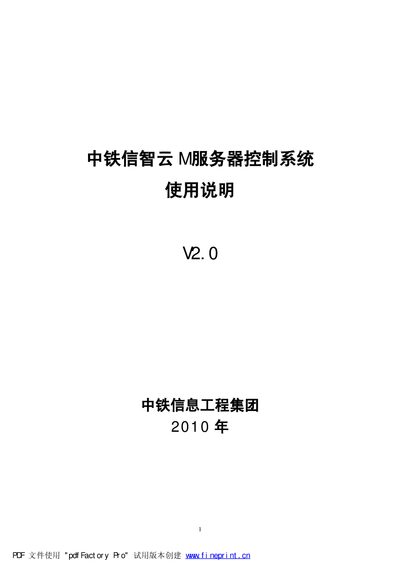

China Railway Information Engineering Group M Server Control System User Manual V2.0

About this manual

The M Server Control System integrates compute, storage, and networking functions in a modular chassis. It supports up to six compute modules, fourteen 2.5" SAS drives, dual 10‑Gb Ethernet switches, and a management module with KVM capability.

The manual provides detailed instructions for connecting client PCs, logging into the management console (default IP 192.168.150.150, username admin, password admin), configuring RAID levels, managing storage pools, and handling common hardware faults such as disk failures and hot‑spare operations. This manual is written in Chinese.

What's inside

• Product Introduction
• Device Composition and Structure
• Connecting Client to Management Console UI
• Login Management Console
• Function Overview
• Usage Instructions
• Basic Concepts
• Daily Operations
• Common Issues and Fault Management
• More Information

Specifications

Frequently asked questions

What is the default IP address for the management module?

The default static IP address is 192.168.150.150.

What are the default login credentials for the management console?

Username: admin, Password: admin.

How many compute modules can be installed in the M server chassis?

Up to six compute modules can be installed.

How many 2.5" SAS hard drives does the system support?

The system supports up to fourteen 2.5" SAS hard drives.
