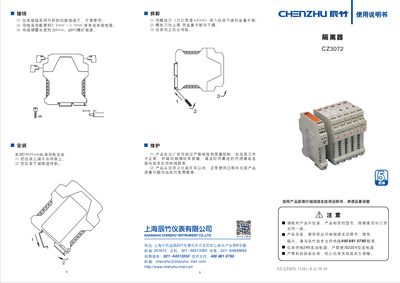

The Chenzhu CZ3072 isolation device converts thermocouple or millivolt signals to isolated 4‑20 mA or 0‑5 V outputs with cold‑junction compensation.
The CZ3072 is a thermocouple input isolator that transforms field thermocouple or millivolt signals into isolated 0‑4‑20 mA current or 0‑1‑5 V voltage outputs. It features automatic cold‑junction compensation, three‑level isolation (power, input, output), and can be configured via a PC using the EasyTT software.
Installation is performed on a DIN‑35 mm rail by clipping the top of the instrument into the rail and pushing the bottom in. Wiring uses detachable terminals with 0.5 mm² conductors and a lock‑nut M3 screw. The device operates from a 24 V DC supply (acceptable range 20‑35 V DC) and includes reverse‑polarity protection and EMC compliance. This manual is written in Chinese.
| Supply Voltage | 20–35 V DC |
|---|---|
| Power Consumption (24 V, 20 mA output) | 24 V, 20 mA |
| Temperature Drift | 0.01 %F.S./°C |
| Response Time (90 % final value) | 1 s |
| Power Protection | Reverse polarity protection |
| EMC Compliance | GB/T 18268 (IEC 61326‑1) ≤35 mA |
| Cold‑Junction Compensation Range | -20 °C to +60 °C |
| Insulation Strength | 1500 V AC for 1 min |
| Insulation Resistance | ≥100 MΩ; 500 V DC to chassis |
| Weight | ≈100 g |
| Output Current | 0/4–20 mA |
| Output Voltage | 0/15 V |
| Load Resistance (Current Output) | ≤300 Ω |
| Load Resistance (Voltage Output) | ≥20 kΩ |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +80 °C |
| Relative Humidity | 10 %–90 % |
| Dimensions (Depth×Height×Width) | 114.5 mm × 99.0 mm × 17.5 mm |
| Interface | USB |
| Configuration Software | EasyTT (Windows) |
Clip the instrument’s top into the DIN‑35 mm rail and push the bottom end into the rail to secure it.
It can output either a 0‑4‑20 mA current signal (load ≤300 Ω) or a 0‑1‑5 V voltage signal (load ≥20 kΩ).
