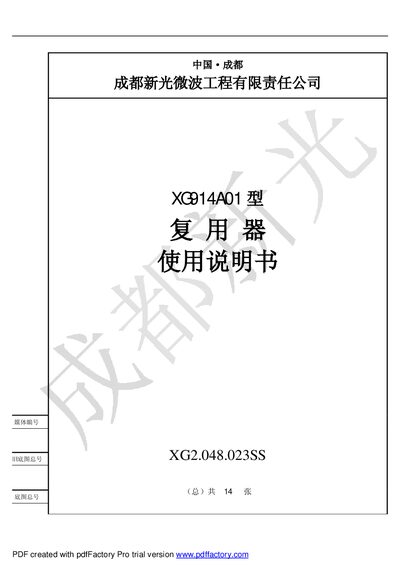

The XG914A01 transport‑stream multiplexer manual provides product overview, safety rules, system architecture, operation steps and troubleshooting for the…
The XG914A01 transport‑stream multiplexer is designed for digital TV front‑end systems, supporting 1‑8 input MPEG‑2 transport streams and outputting a single combined stream. The manual describes the hardware composition, ASI interfaces, and the internal processing that filters and remaps program data.
Safety precautions, connection diagrams, menu navigation, parameter settings, and error‑indication LEDs are covered. The document also lists technical specifications such as input/output bitrate, connector type, and packet formats, and provides step‑by‑step troubleshooting for common faults. This manual is written in Chinese.
| Number of input interfaces | 8 DVB‑standard ASI interfaces |
|---|---|
| Input connector type | BNC |
| Maximum input bitrate per channel | 72 Mbps |
| Input TS packet format | 188/204 bytes (auto‑detect) |
| Output connector type | BNC |
| Output bitrate | 72 Mbps |
| Output TS packet format | 188 bytes |
The POWER LED lights red when the power switch is on, showing that the device’s power is normal.
Check that the power cable is plugged into a socket and that the power switch is in the ON position.
It provides eight DVB‑standard ASI input ports.
Each input channel can handle up to 72 Mbps.
