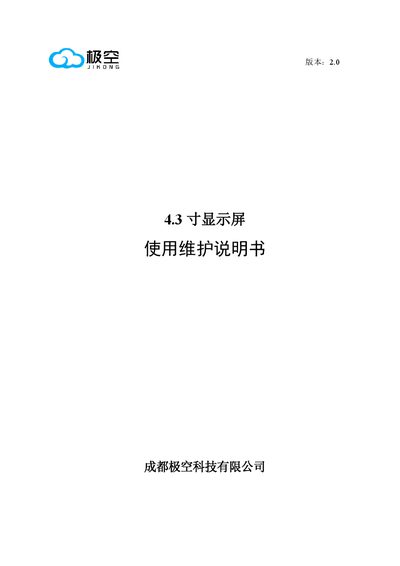

This manual provides usage, maintenance, specifications, installation and wiring details for the Chengdu Jikong Technology 4.3‑inch display.
The document describes how to operate and maintain the 4.3‑inch TFT display, covering its appearance, external connectors, power requirements, pin definitions and environmental limits. It also includes dimensional drawings, installation steps and cable routing information.
Key sections include display appearance, external interfaces, detailed specifications, power supply range, pinout table, operating environment, product dimensions, installation instructions and cable diagrams. This manual is written in Chinese.
| Display size (W×H) | 95.0 mm × 53.9 mm |
|---|---|
| Resolution | 480 × 272 |
| Color depth | 65 K true color |
| Backlight type / Brightness | LED / 300 nit/m |
| Viewing angle (L/R/U/D) | 70° / 70° / 50° / 70° |
| Supply voltage | 6 V – 36 V (reverse‑polarity protected) |
| Power consumption | 1.4 W (12 V @ 116 mA) |
| SD card interface | SD / SDHC |
The display can operate from –20 °C to +70 °C.
The display accepts a supply voltage between 6 V and 36 V and includes reverse‑polarity protection.
The viewing angles are 70° left, 70° right, 50° up and 70° down.
