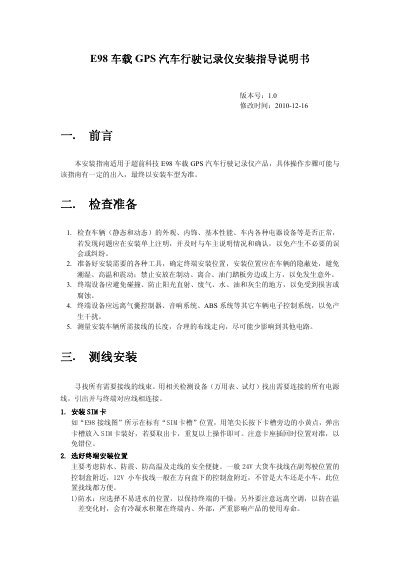

This guide provides installation instructions for the Chaoqian Technology E98 vehicle GPS recorder, covering preparation, wiring connections, and debugging.
This document serves as an installation guide for the Chaoqian Technology E98 vehicle GPS recorder. It outlines procedures for pre-installation checks, selecting the terminal location, and connecting various vehicle signal lines including power, oil level, and detection signals.
The guide details specific wiring connections for 12V and 24V vehicles, explaining how to identify constant power (B+), ACC, ground, and fuel pump lines. It also covers the installation of the emergency alarm button, GPS antenna, GSM antenna, and various detection sensors such as brake lights, turn signals, and speed sensors. This manual is written in Chinese.
| Ground Connection Requirement | Ensure good conductivity at the ground point |
|---|
The installation location should be hidden, avoiding moisture, high temperatures, and vibration.
It is the line that outputs high voltage when the key is in the ON position for 4-5 seconds and then stops.
You must confirm there is no short circuit or reverse polarity connection in the GPS recorder power.
