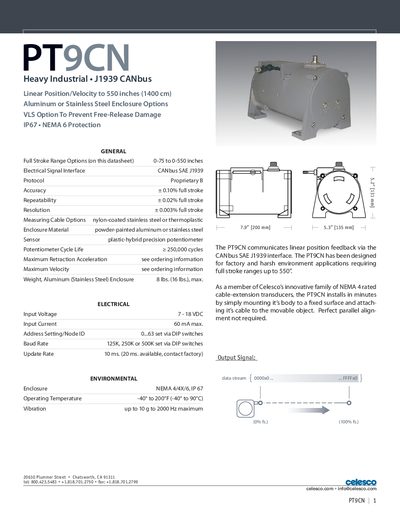

The Celesco PT9CN linear position transducer provides CANbus SAE J1939 feedback for stroke ranges up to 550 inches.
The PT9CN is a linear position transducer that communicates position feedback via the CANbus SAE J1939 interface and is designed for factory and harsh‑environment applications. It offers full‑stroke ranges from 0‑75 inches up to 0‑550 inches, with an accuracy of ±0.10 % of full stroke and a repeatability of ±0.02 %.
The device features a powder‑painted aluminum or stainless‑steel enclosure (NEMA 4/4X/6, IP67), a plastic‑hybrid precision potentiometer, and selectable measuring cable options (nylon‑coated stainless steel or thermoplastic). Electrical specifications include a 7‑18 VDC input voltage, 60 mA max current, and configurable CANbus baud rates of 125 k, 250 k or 500 k.
| Full Stroke Range | 0‑75 to 0‑550 inches |
|---|---|
| Accuracy | ±0.10 % full stroke |
| Repeatability | ±0.02 % full stroke |
| Resolution | ±0.003 % full stroke |
| Measuring Cable Options | nylon‑coated stainless steel or thermoplastic |
| Enclosure Material | powder‑painted aluminum or stainless steel |
| Input Voltage | 7‑18 VDC |
| Input Current | 60 mA max |
| Weight (Aluminum Enclosure) | 8 lb |
| Weight (Stainless Steel Enclosure) | 16 lb |
| Baud Rate Options | 125 k, 250 k, 500 k |
| Update Rate | 10 ms (20 ms optional) |
| Enclosure Rating | NEMA 4/4X/6, IP67 |
| Operating Temperature | -40 °F to 200 °F |
| Vibration Resistance | up to 10 g, 2000 Hz |
The PT9CN communicates linear position feedback via the CANbus SAE J1939 interface.
The Node ID is set via six DIP switches on the DeviceNET controller board inside the transducer.
The PT9CN can be ordered for full‑stroke ranges up to 550 inches.
The enclosure is rated NEMA 4/4X/6 and meets IP67 standards.
