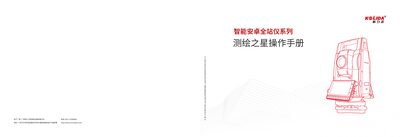

Cehui Zhi Xing Smart Android Total Station Series User Manual

About this manual

This manual covers all aspects of using the Smart Android Total Station series, from unpacking and battery handling to detailed measurement procedures, data collection, and staking out. Safety precautions, such as laser protection and proper storage, are emphasized throughout.

Additional sections describe advanced functions like total‑station data links, engineering project setup, calculation tools, programming options, and comprehensive instrument calibration procedures. This manual is written in Chinese.

What's inside

• Preparation
• Operation Introduction
• Measurement
• Station Setup
• Data Collection
• Staking Out
• Total Station Functions
• Calculations
• Settings
• Instrument Calibration

Frequently asked questions

How should the instrument be stored when not in use?

Store the instrument in its box, keep it dry, protect it from shock, dust and moisture, and remove the battery for long‑term storage.

What safety precaution is required when using the laser emitter?

The laser emitted by the instrument must never be pointed at the eyes.

How should the touch screen be cleaned?

Do not use sharp objects; keep the touch screen clean with a soft cloth.

When should the instrument be sent for professional calibration?

If the telescope crosshair is far from the laser axis, the instrument must be sent to a professional repair department for calibration.
