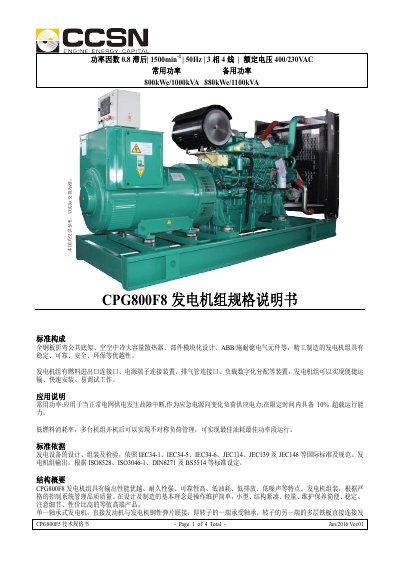

The manual provides technical specifications, dimensions, performance data and application guidance for the CCSN CPG800F8 generator set.
The CPG800F8 generator set from CCSN is a compact, low‑noise, low‑emission power solution designed for industrial, institutional and remote applications. It features a full‑steel frame, modular components and high‑quality ABB/Schneider electrical parts for reliable operation.
The document details the unit's rated and standby power, electrical characteristics, environmental limits, dimensions, weight, as well as the specifications of the Yuchai diesel engine and TCU428 C alternator that power the set. This manual is written in Chinese.
| Common Power | 800 kWe |
|---|---|
| Standby Power | 880 kWe |
| Rated Voltage | 400/230 V AC |
| Power Factor | 0.8 lagging |
| Dimensions (L×W×H) | 4300 mm × 1800 mm × 2500 mm |
| Weight | ≈8500 kg |
| Engine Type | 6‑cylinder L‑type, turbocharged |
| Engine Displacement | 39.584 L |
| Alternator Model | TCU428 C |
