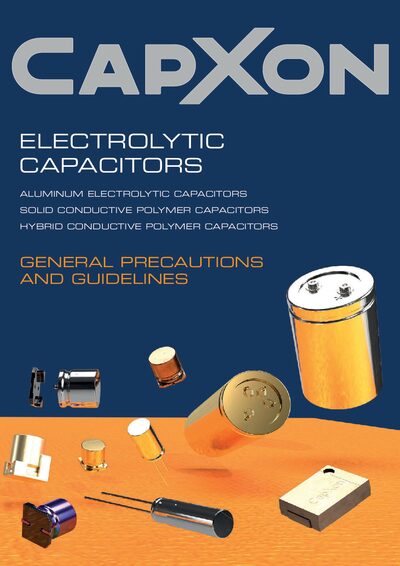

This manual provides handling, installation, and safety guidelines for CapXon's aluminum electrolytic, solid and hybrid conductive polymer capacitors.
The document outlines general precautions that apply to all CapXon electrolytic capacitor technologies, covering polarity marking, over‑voltage limits, operating temperature, ripple current, and charge‑discharge handling. It also gives specific instructions for each capacitor family – aluminum electrolytic, solid conductive polymer and hybrid conductive polymer – and for different mounting styles such as radial, snap‑in, and screw types.
Additional sections describe recommended soldering profiles, moisture‑sensitive level handling, chemical resistance, cleaning and washing restrictions, gluing/filling/coating rules, mechanical stress avoidance, storage conditions, disposal procedures, and safety measures for vent operation. The guidelines are intended for designers, manufacturers, and end‑users to ensure reliable and safe capacitor performance.
| Preheat temperature min | 150 °C |
|---|---|
| Preheat temperature max | 180 °C |
| Maximum allowed reflow runs (4‑6.3 mm caps) | 10 max, twice |
Store between 5 °C and 35 °C with humidity below 75 %.
