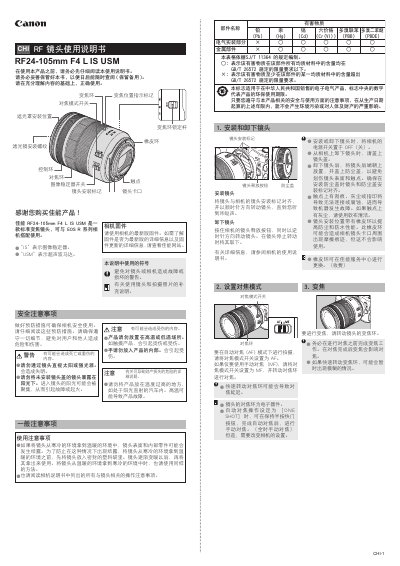

The Canon RF24-105mm f/4 L IS USM lens user manual provides safety warnings, installation steps, operation instructions, and technical specifications.
This manual explains safety precautions and proper handling of the RF24-105mm f/4 L IS USM lens, including warnings about direct sunlight, temperature changes, and proper storage. It also details how to install and remove the lens, set focus modes, and operate the zoom and control rings.
Additional sections cover the use of the image stabilizer, lens hood, filter thread, and optional close‑up lenses, followed by a complete specification table for quick reference. This manual is written in Chinese.
| Focal length / aperture | 24‑105 mm f/4 |
|---|---|
| Lens construction | 14 groups, 18 elements |
| Minimum aperture | f/22 |
| Maximum magnification | 0.24× (at 105 mm) |
| Closest focusing distance | 0.45 m |
| Filter thread diameter | 77 mm |
| Weight | ≈ 700 g |
Align the lens’s mount mark with the camera’s mount mark and rotate the lens clockwise until you hear a click.
Set the image stabilizer switch to ON when you want stabilization, and to OFF when you do not need it or when using a tripod.
