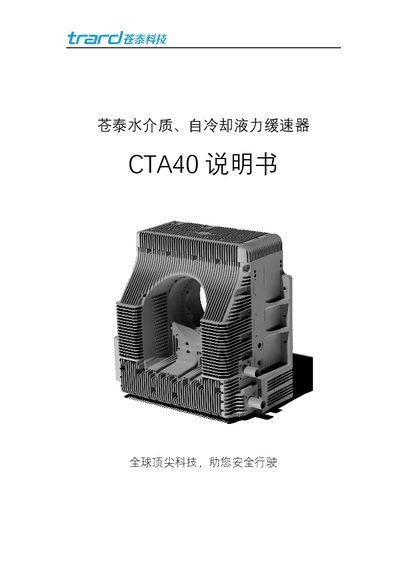

The manual details installation, operation, troubleshooting and maintenance of the Cangtai CTA40 water‑mediated self‑cooling hydraulic retarder for trucks.
The Cangtai CTA40 is a water‑mediated self‑cooling hydraulic retarder designed for auxiliary braking on truck chassis. It uses water as the working medium to provide high‑power, long‑duration, wear‑free braking by converting vehicle kinetic energy into heat.
This service manual covers the retarder’s installation position, component assembly, internal structure and operating principle, as well as detailed instructions for the display screen, cabin panel switches, water and antifreeze filling, self‑check procedures, fault diagnostics, regular cleaning, and torque specifications for all fasteners. This manual is written in Chinese.
| Number of impellers | 3 |
|---|---|
| Impeller rotor type | Double‑sided blade rotor |
| Fastening torque for rotor to bearing seat | 100 N·m |
| Fastening torque for main unit to bearing seat | 175 N·m |
The display shows the message “液位上限传感器未接通”.
Press the reset key on the display and restart the controller; if the speed remains zero, the speed sensor is likely damaged and must be inspected or replaced.
